The builder has a landing page at tunaos.org/iso-builder and runs at https://iso.tunaos.org.

⚠️ Alpha — experimental preview; interfaces and limits below will change.

Build a live, bootable TunaOS ISO from any bootable container image — entirely in your browser. Nothing is uploaded anywhere: the registry pull, filesystem authoring, and ISO assembly all run locally in WebAssembly, using the exact same engine (tacklebox's pure-Go core) that TunaOS CI uses to build release media.

Live at: https://iso.tunaos.org

Screenshots below are generated automatically by the Playwright walkthrough (prototype/iso-builder/e2e, npm run walkthrough) — if the app changes, rerun it and commit the refreshed images.

Quick start​

  1. Open the builder. You'll see the image input and an Advanced panel.

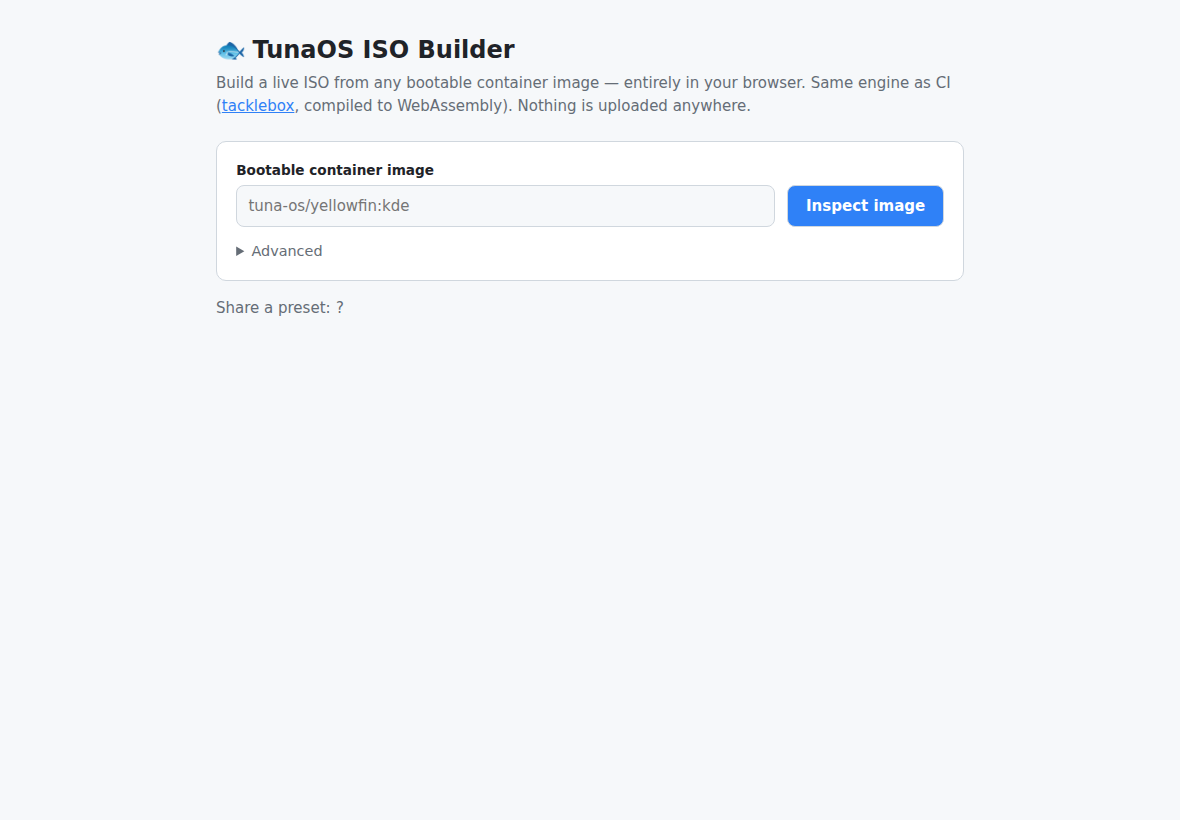

    Home screen

  2. Enter a bootable container image. Anything OCI works as long as the image is bootc-style (kernel under /usr/lib/modules):

    • tuna-os/sailfin:base — a TunaOS image on GHCR (short form)
    • ghcr.io/you/your-os:tag — any GHCR image (fetched via the TunaOS CORS relay)
    • quay.io/… / other registries — fetched directly; works when the registry sends CORS headers

    Image entered

  3. Inspect. The engine pulls the manifest, unpacks every layer in-browser (whiteouts and hardlinks handled like a real container runtime), and shows what it found: the desktop environment (detected from the image's session files), kernel version, systemd-boot presence, and file count.

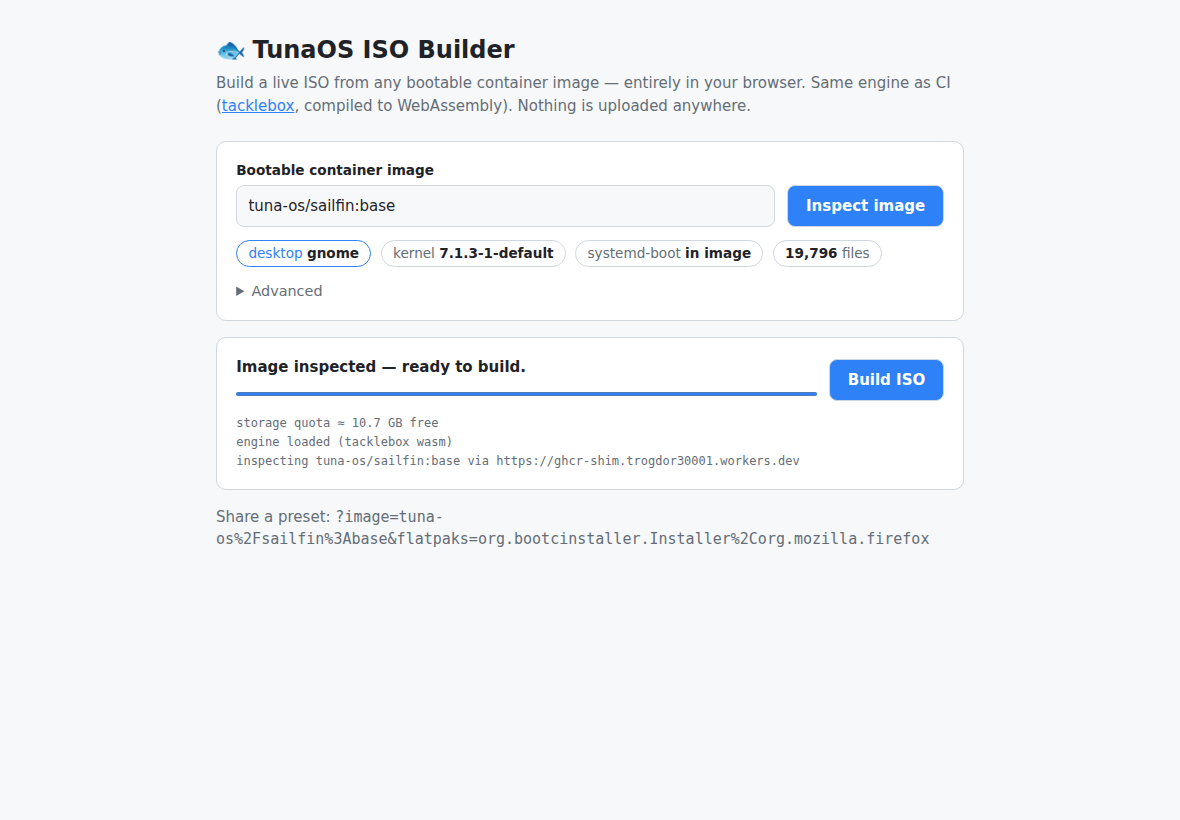

    Inspected image with facts

  4. Tune under Advanced (optional).

    • Volume label — the ISO's CDLABEL.
    • Flatpak preload list — a checklist prefilled per detected desktop (GNOME and KDE have their own defaults; niri/xfce use GNOME's). Untick anything you don't want, and use the Flathub search box to autocomplete and add more apps. The final list is embedded into the ISO as /LiveOS/flatpak-preload.json for the live environment to consume.
    • tbox initramfs URL — see Bootability below.

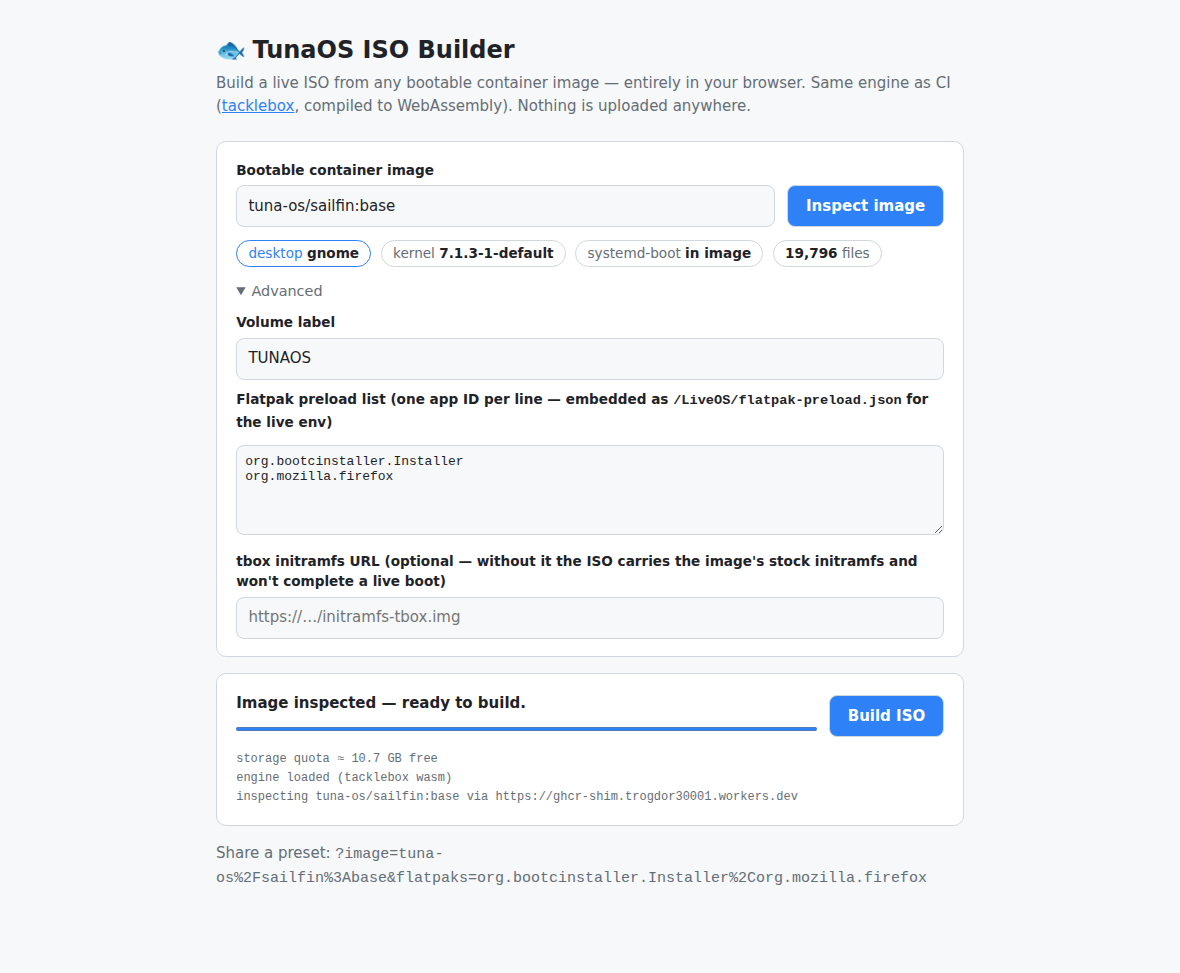

    Advanced panel

  5. Build ISO. The ISO streams straight to disk (File System Access API; falls back to a regular download). The EROFS live root, FAT EFI system partition, and ISO9660/El Torito container are all authored in WASM.

Share a preset — URL parameters​

The builder is deep-linkable, so any project can point users at a pre-configured build:

ParamMeaningExample
imageimage to pre-fill?image=tuna-os/sailfin:base
autorun1 starts the inspect immediately on load (without it, params only pre-fill — a link never starts a multi-GB pull by itself)&autorun=1
flatpakscomma-separated app IDs replacing the default list&flatpaks=org.example.App,org.mozilla.firefox
labelvolume label&label=MYOS
initrdURL of a tbox-enabled initramfs to embed&initrd=https://…/initramfs.img

Example: https://iso.tunaos.org/?image=ghcr.io/you/your-os:stable&label=YOUROS

The Share a preset link at the bottom of the page always encodes the current form state — click it to test, or hit Copy to share it.

Bootability​

A live ISO needs an initramfs containing tacklebox's live-boot modules (tbox-live — they mount the ISO, the EROFS root, and assemble the overlay). Two paths:

  • Supply a tbox initramfs URL (Advanced → initramfs URL): the ISO is then fully live-bootable, identical in layout to CI-built media. CI-published per-variant initramfs artifacts are planned; until then build one locally (dracut --add "tbox-live tbox-root" inside the image) and host it anywhere fetchable.
  • No URL supplied: the ISO carries the image's stock initramfs. It boots firmware → bootloader → kernel, but stops before the live desktop (the stock initramfs doesn't know how to assemble a live root). The builder shows a warning banner in this mode.

Current limits (MVP)​

  • Memory: the unpacked image and the EROFS live in browser memory — base images are fine; large desktop images need the planned OPFS-backed store.
  • Flatpak preload is a manifest the live environment consumes at boot, not a baked flatpak deployment.
  • Registries other than GHCR must send CORS headers (most don't); GHCR works for any public image via the relay.

Testing​

prototype/iso-builder/e2e holds the Playwright suite:

cd prototype/iso-builder/e2e
npm install && npx playwright install chromium
npx playwright test                # UI + real inspect flow
npm run walkthrough                # regenerates the doc screenshots
TBOX_E2E_FULL=1 npx playwright test  # + full ISO build & PVD check

The iso-builder-e2e workflow runs the same suite in CI on changes to prototype/iso-builder/**.

Part of the Tuna OS ecosystem.
