In-place migration utility that converts an OSTree-backend bootc system (e.g. Bluefin) into a ComposeFS-backend bootc system (e.g. Dakota), without reinstalling and without losing /home, /var, /etc customizations, flatpaks, container storage, or user accounts.

Migrate Bluefin → Dakota (quick start)

The common case: Bluefin stable (btrfs) → Dakota stable. Five steps. Your old OSTree deployment stays in the boot menu as a fallback the whole time.

⚠️ Back up anything you can't afford to lose first. This rewrites how your system boots. It preserves /home, /var, /etc, flatpaks, container storage, and user accounts — but treat it as risky until you've rebooted and confirmed everything works. It's reversible until you run commit (step 5).

1. Get the migrator. Download the latest prebuilt binary (x86_64; for arm64 swap in aarch64-unknown-linux-gnu):

curl -fsSL -o bmc.tar.gz \
  https://github.com/tuna-os/bootc-migrate/releases/latest/download/bootc-migrate-x86_64-unknown-linux-gnu.tar.gz
tar xzf bmc.tar.gz
sudo install -m755 bootc-migrate /usr/local/bin/

…or pull the container image

A minimal image ships the same binary, useful when GitHub Releases is rate-limited/blocked, or to COPY --from= it into another Containerfile:

podman create --name bmc-extract ghcr.io/tuna-os/bootc-migrate:latest
podman cp bmc-extract:/usr/local/bin/bootc-migrate .
podman rm bmc-extract
sudo install -m755 bootc-migrate /usr/local/bin/

…or build from source (needs Rust)

git clone https://github.com/tuna-os/bootc-migrate
cd bootc-migrate
cargo build --release
sudo install -m755 target/release/bootc-migrate /usr/local/bin/

2. Dry-run — makes no changes, just checks your system is ready:

sudo bootc-migrate \
  --target-image ghcr.io/projectbluefin/dakota:stable --dry-run

3. Migrate (~5–25 min depending on cache/network):

sudo bootc-migrate \
  --target-image ghcr.io/projectbluefin/dakota:stable

4. Reboot — the new composefs entry is the default. If anything looks wrong, pick the old Bluefin / OSTree entry in the boot menu to get straight back.

sudo systemctl reboot

5. Confirm, then make it permanent:

cat /proc/cmdline | grep -o 'composefs=[0-9a-f]*'   # confirms composefs boot
sudo bootc-migrate commit                 # one-way; removes the OSTree fallback

⚠️ Note: Phase 4 copies /var to the composefs side. After migration, the two /var trees are independent — changes you make on the composefs side won't be reflected if you roll back to OSTree (and vice versa). Commit only when you're satisfied with the new system.

That's it. For flags, rollback, troubleshooting, and the full phase-by-phase breakdown, see Usage — end-to-end walkthrough. On Bluefin LTS (XFS) or systems with LVM / LUKS / a dedicated /var partition, the tool handles those automatically — see docs/filesystem-support.md.

Status: CI-validated, released, and proven on real hardware. Four E2E scenarios — btrfs, ext4, LUKS+XFS, and LVM-on-LUKS with a dedicated /var — run in CI on every push to main (migration, commit, deep-clean, and bootc status / upgrade --check all green). Prebuilt binaries are on the Releases page. Don't point this at a machine you can't reinstall, but the core path is stable.

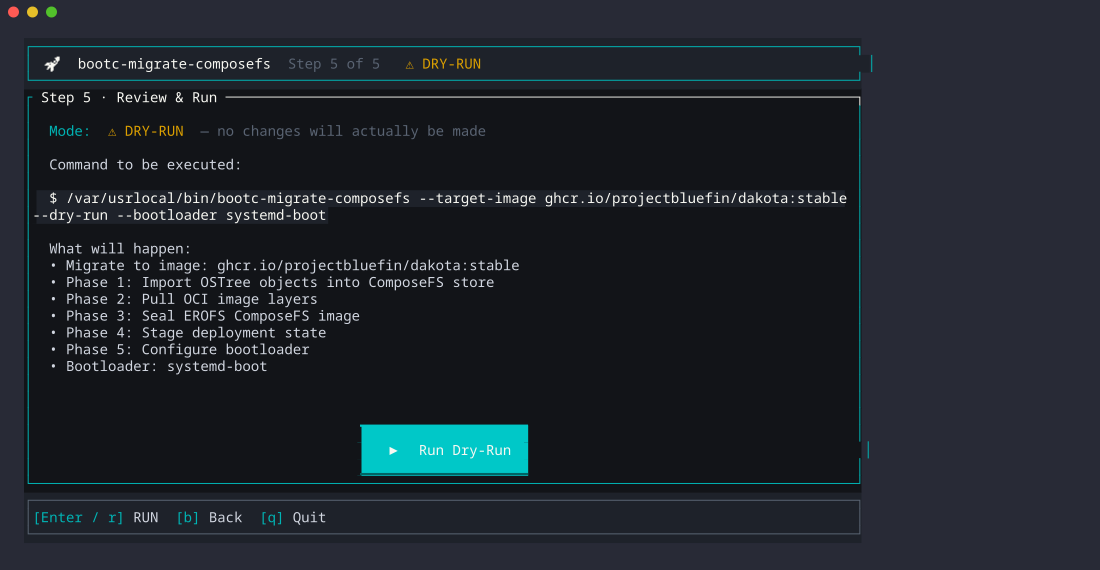

Interactive wizard (TUI)

Prefer a guided walkthrough over flags? Run the tool with no --target-image (or tui explicitly) to launch a terminal wizard that walks through target image selection, options, a plain-English review of what's about to happen, and a live phase-by-phase progress view with scrollable logs:

sudo bootc-migrate tui

The wizard defaults to --dry-run and only builds the equivalent CLI invocation shown on the Review screen — it doesn't need root just to browse; root is required once you press Enter to actually run a migration.

Architecture

flowchart TB
    %% ── Source: what we migrate from ────────────────────────────
    subgraph SRC["Source · OSTree-backed Bluefin"]
        direction TB
        S_USR["<b>/</b> &mdash; OSTree hardlink farm<br/>/usr/etc &middot; /ostree/repo object store"]
        S_ETC["<b>/etc</b><br/>live, 3-way-merge source"]
        S_VAR["<b>/ostree/deploy/&lt;n&gt;/var</b><br/>user state"]
        S_BOOT["<b>/boot/loader/entries</b><br/>GRUB BLS &middot; ostree-*"]
    end

    %% ── The migration tool: six phases, one command ─────────────
    subgraph BIN["bootc-migrate &middot; 6 phases (0&ndash;5)"]
        direction TB
        P0["<b>Phase 0 &middot; Preflight</b><br/>ESP size &middot; NVRAM &middot; reflink"]
        P1["<b>Phase 1 &middot; OSTree import</b> (optional)<br/>reflink objects &rarr; composefs store"]
        P2["<b>Phase 2 &middot; OCI pull</b><br/>target image &rarr; composefs store"]
        P3["<b>Phase 3 &middot; EROFS seal</b><br/>build &middot; seal &middot; capture config digest"]
        P4["<b>Phase 4 &middot; Stage deploy</b><br/>3-way /etc merge (sealed mount)<br/>symlink prune &middot; identity-DB union<br/>/var copy &middot; .origin (tini)"]
        P5["<b>Phase 5 &middot; Bootloader</b><br/>sd-boot from sealed mount<br/>BLS entries on ESP &middot; NVRAM"]
        P0 --> P1 --> P2 --> P3 --> P4 --> P5
    end

    %% ── Target: what we migrate to ──────────────────────────────
    subgraph DST["Target &middot; ComposeFS-backed Dakota"]
        direction TB
        D_CFS["<b>/composefs/</b><br/>images/ (EROFS) &middot; objects/ &middot; streams/"]
        D_STATE["<b>/state/deploy/&lt;verity&gt;/</b><br/>etc/ &middot; &lt;verity&gt;.origin"]
        D_VAR["<b>/state/os/default/var</b><br/>bind-mounted as /var by initramfs"]
        D_BOOT["<b>/EFI/Linux/bootc_composefs-&lt;verity&gt;/</b><br/>vmlinuz &middot; initrd<br/>/loader/entries/*.conf &middot; systemd-bootx64.efi"]
    end

    %% ── Data flows across the lanes ─────────────────────────────
    S_USR -- "ostree object reflinks" --> P1
    P2 --> D_CFS
    S_ETC -- "current / old / new merge" --> P4
    P4 --> D_STATE
    S_VAR -- "verbatim copy<br/>(containers &middot; flatpaks &middot; machine-id)" --> D_VAR
    P3 -- "sealed config digest<br/>(not rootfs verity)" --> P4
    P3 --> P5
    P5 -- "copy from sealed mount" --> D_BOOT
    P5 -. "efibootmgr &middot; Linux Boot Manager" .-> NVRAM(["UEFI NVRAM"])

    RUN["<b>Booted Dakota</b><br/>/ = composefs overlay (RO)<br/>/etc writable &larr; state/<br/>/var writable &larr; state/os/default/var"]
    DST -. "reboot &rarr; systemd-boot &rarr; kernel<br/>cmdline composefs=&lt;verity&gt;" .-> RUN

    %% ── Lane colours ────────────────────────────────────────────
    classDef src fill:#e3f0ff,stroke:#3b82c4,color:#0b2545;
    classDef bin fill:#fff4e0,stroke:#d9920b,color:#5a3a00;
    classDef dst fill:#e4f7e7,stroke:#3ca34a,color:#06311a;
    classDef run fill:#f3e8ff,stroke:#8b5cf6,color:#2e1065;

    class S_USR,S_ETC,S_VAR,S_BOOT src;
    class P0,P1,P2,P3,P4,P5 bin;
    class D_CFS,D_STATE,D_VAR,D_BOOT dst;
    class RUN,NVRAM run;

Key insight: Phase 3 runs bootc internals cfs oci seal which prints the sealed manifest's config digest. Phases 4 and 5 pass that sealed config digest (not the rootfs verity) to bootc cfs oci mount — the overlay then exposes real file content for /etc, kernel, initrd, systemd-boot, and kernel modules, eliminating the need to re-stream OCI layers at runtime.

What it does

Six phases (numbered 0–5 to match the console output), run as one command:

• Phase 0 — Preflight — free-space, reflink/CoW, UEFI, NVRAM-writable, ESP capacity.
• Phase 1 — OSTree import (optional) — reflinks existing OSTree file objects into the composefs object store so the pull in Phase 2 is mostly dedup. Skipped with --skip-import.
• Phase 2 — OCI pull — bootc internals cfs oci pull of the target bootc image into the composefs store.
• Phase 3 — EROFS seal — builds and seals the EROFS image, capturing the sealed config digest that Phases 4 and 5 mount.
• Phase 4 — Stage deploy — 3-way /etc merge (read from the sealed mount, no registry streaming), identity-DB line-union, dangling /usr/* symlink pruning, /var data copy into state/os/default/var, and .origin (boot_digest, manifest_digest) written via tini.
• Phase 5 — Bootloader — copies systemd-bootx64.efi from the sealed mount to the ESP (no registry streaming), writes BLS entries, and registers Linux Boot Manager in UEFI NVRAM. The original GRUB entry is left as a rollback escape hatch.

After a successful reboot into the composefs entry, bootc-migrate commit removes the OSTree fallback and makes composefs permanent.

Usage — end-to-end walkthrough

Before you start. This tool rewrites bootloader state and copies the entire /var. Don't run it on a machine you can't reinstall in a pinch. Until you run commit, it's reversible — but a fresh backup is still cheap insurance.

1. Decide your target

The migration takes a --target-image — the composefs-backed bootc image you want to end up on. Today the validated path is Bluefin → Dakota:

ghcr.io/projectbluefin/dakota:stable     # default target

If you're migrating a different OSTree-backed system (Aurora, Silverblue), point --target-image at the composefs-flavored equivalent.

2. Check readiness with a dry-run

sudo bootc-migrate \
  --target-image ghcr.io/projectbluefin/dakota:stable \
  --dry-run

Things to confirm in the report:

• Booted OSTree backend: Yes — required; if No the tool refuses to run.
• UEFI Boot Mode: Yes + NVRAM writable: Yes — required for the systemd-boot path; on BIOS-only or locked NVRAM pass --bootloader grub2.
• ESP Free Space: ≥ 150 MB — we copy systemd-bootx64.efi from the target image onto the ESP.
• Reflink (CoW) Support: Yes — btrfs and XFS both support reflink.
• ComposeFS free space: ≥ 1.1 × ostree_repo_size — the composefs object store is built by reflinking your existing OSTree objects.

Optionally, preview what Phase 4's /etc merge will see before running it:

sudo bootc-migrate etc-drift

Lists every path where your live /etc has diverged from the OSTree factory default (added/modified/removed/type-changed), read-only. Useful for spotting a stale customization you no longer need before it carries forward into the migrated system.

3. Run the migration

sudo bootc-migrate \
  --target-image ghcr.io/projectbluefin/dakota:stable

Expect ~5–10 minutes on warm caches, ~15–25 minutes on a cold pull. Six phase headers (0–5) print as it goes:

Phase	What's happening	Why it might take a while
0 — Preflight	Same checks as --dry-run	seconds
1 — OSTree import (optional)	Reflinks existing OSTree file objects into the composefs object store so Phase 2 mostly dedups	tens of seconds to a few minutes; skip with --skip-import
2 — OCI pull	bootc internals cfs oci pull of the target image	minutes (network-bound)
3 — EROFS image	Builds + fs-verity-signs the composefs metadata image	seconds
4 — Stage deploy	3-way /etc merge (from sealed mount), dangling-symlink prune, identity-DB line-union, /var copy to state/os/default/var, .origin file written	~1 minute
5 — Bootloader	Copies systemd-boot from mounted image, writes BLS entries, registers NVRAM	~30s

When it ends with === MIGRATION COMPLETED === the on-disk state is ready. Reboot:

sudo systemctl reboot

4. Validate the composefs boot

Log in (your existing accounts and SSH keys still work) and check:

cat /proc/cmdline                                       # must contain composefs=<hex>
bootc status                                            # should report the composefs deployment
bootc status --json | jq .status.booted.composefs        # non-null

Spend a day on it. Run your usual workflow — flatpaks, dnf, containers, homebrew, GNOME extensions, whatever. Everything that lived under /home, /var, and /etc on Bluefin should be where you left it. If something is missing or broken, you can roll back (see below).

A login banner (/etc/motd.d/85-bootc-migrate) reminds you to run commit on every login until you do, so a live migration doesn't sit forgotten in this dual-boot state indefinitely. It clears itself once commit runs — or once undo runs, since at that point there's nothing left to commit.

5. Make it permanent (one-way)

Once you trust the new system:

sudo bootc-migrate commit

This removes the OSTree fallback from the ESP, drops GRUB2 boot artifacts, and reclaims ~14 GiB of OSTree object store. The systemd-boot entry becomes the sole default with timeout 0.

Flags

Flag	Purpose
--dry-run	Print every action; touch nothing
--skip-import	Skip phase 1 (faster when target image is mostly new content)
--bootloader grub2	Stay on GRUB2 instead of installing systemd-boot
--skip-preflight	Bypass preflight checks (don't, unless you know exactly why)
--force	Proceed past non-fatal warnings

Rollback / recovery

Until you run commit, the migration is reversible. The previous OSTree deployment stays bootable:

• Phase 5 only adds the systemd-boot composefs entry; it never deletes the existing /boot/loader/entries/ostree-*.conf files.
• The original /ostree/deploy/<n>/deploy/<commit>.0/ rootfs and /ostree/deploy/<n>/var/ stay on disk.
• Phase 4 copies /var to state/os/default/var; the OSTree side's /var is independent of the composefs side's after migration.
• We push Linux Boot Manager (systemd-boot) to the front of NVRAM BootOrder but the Fedora shim entry (which boots GRUB → OSTree) remains listed.

Automatic rollback subcommand

To return to the original OSTree deployment directly from the command line:

sudo bootc-migrate rollback --reboot
# or via the universal re-base CLI:
sudo bootc-rebase rollback --reboot

This verifies prerequisites, re-orders UEFI BootOrder so the OSTree entry (Fedora/GRUB) takes top priority, and reboots immediately into the OSTree deployment.

Manual firmware recovery

If the system fails to boot into composefs or NVRAM state is interrupted:

1. Power on; tap the firmware boot-menu key (commonly F12, F8, or Esc).
2. Pick the Fedora entry. GRUB will show the original ostree:0 menu.
3. Boot it. You land on the pre-migration system with its /var and /etc intact.

Or, from a working composefs login, one-shot:

sudo efibootmgr -v | grep -E 'Fedora|Linux Boot Manager'
sudo efibootmgr --bootnext <Boot####-of-Fedora>
sudo systemctl reboot

Pre-migration diagnostic snapshots and logs are automatically recorded under /var/log/bootc-migrate/ on every run (preflight-*.json and migration.log) so boot configuration can be manually reconstructed if NVRAM is ever wiped.

After running bootc-migrate commit, the OSTree fallback is removed from the ESP and rollback becomes a fresh install. The E2E test exercises the full round-trip (composefs → OSTree → composefs) on every run.

What's preserved

Validated end-to-end (21+ assertions per run; see tests/run-e2e.sh):

• /var data — /var/lib/*, /var/log/*, /var/cache/*, containers, flatpak system installs, machine-id, hidden dirs and symlinks
• User homes — /var/home/<user>/, dotfiles, project trees, SSH keys (with .ssh mode preserved so StrictModes still accepts your keys), wallpapers, GNOME extensions, dconf user db, glib gsettings keyfile, homebrew Cellar, per-user flatpak installs
• /etc state — /etc/sudoers.d/*, /etc/hosts edits, custom sshd_config.d/*, custom config files added under /etc/, in-place edits to image-shipped files (/etc/hostname), /etc symlinks
• Accounts — /etc/passwd, /etc/shadow, /etc/group line-union merged so users you added survive and users the target image needs (messagebus, polkitd, …) get added

What's intentionally not carried forward:

• OSTree/rpm-ostree state markers (.updated, .rpm-ostree-shadow-mode-fixed2.stamp)
• GRUB2 config files (grub2.cfg, grub2-efi.cfg, /etc/grub.d/) — the target uses systemd-boot
• Source-image /etc files the target image removed (e.g. sshd_config.d/40-redhat-crypto-policies.conf which references /etc/crypto-policies/ paths Dakota doesn't ship)

Troubleshooting

Symptom	Likely cause	Fix
Phase 0 refuses with "System is not booted into an OSTree deployment"	You're already on composefs (or a non-bootc system)	Nothing to do
Phase 2 fails with ENOSPC mid-pull	/sysroot/composefs is tight on the 1.1× heuristic	Free space or grow the partition, then rerun
Post-reboot cat /proc/cmdline shows ostree= not composefs=	Firmware ignored the new NVRAM entry, or OVMF loaded Fedora\shim instead	Use firmware boot menu to pick Linux Boot Manager; if that fails, fall back to OSTree and report the firmware quirk
bootc status says "No manifest_digest in origin"	You're on an old build of this tool	Update to main — version info is on the first line of the migration log
SSH key auth broken post-migration	Permissions changed during /var copy	Boot OSTree fallback and chmod 700 ~/.ssh; chmod 600 ~/.ssh/authorized_keys
GNOME boots but session settings (wallpaper, accent) look wrong	dconf database needs recompile	dconf update as your user, or log out + back in
Migration went wrong and you want to undo it	Something failed mid-migration	Run sudo bootc-migrate undo (removes composefs boot artifacts, keeps object store) or sudo bootc-migrate undo --full (full cleanup including object store); then reboot into OSTree

Requirements

• Booted on an OSTree-backed bootc system (Bluefin, Aurora, Silverblue…)
• UEFI firmware with writable NVRAM (for the systemd-boot path; GRUB2 fallback works on BIOS)
• Btrfs or XFS sysroot with reflink/CoW support
• ESP with ≥150 MB free
• ≥ 1.1 × ostree_repo_size free on /sysroot/composefs (no reflink: 1.5×)
• Outbound registry access for bootc internals cfs oci pull (Phase 2 fetches the target image; Phases 4–5 read artifacts from the sealed mount, so no runtime registry access is needed after Phase 2)

Building

cargo build --release

Drops a single binary at target/release/bootc-migrate. Requires Rust 1.85+ and a Linux host with libxkbcommon-dev.

End-to-end tests

A QEMU-based E2E harness lives in tests/run-e2e.sh. It installs Bluefin into a disk image, runs the migration against a registry mirror of the Dakota target image, reboots, and validates the full round-trip.

sudo ./tests/run-e2e.sh

Overridable via env: BASE_IMAGE, TARGET_IMAGE, DISK_SIZE, FILESYSTEM, SKIP_SETUP. The CI matrix runs four scenarios: btrfs (default), XFS+ext4-loopback, LUKS+XFS+crypt, and LVM-on-LUKS with a dedicated /var.

Layout

A Cargo workspace with three crates (see ROADMAP.md for why):

• crates/bootc-migrate-core — the capability library everything else is built from: phases, preflight/readiness, /etc merge (mergetc), OSTree object scan, registry streaming, transaction (commit/undo), target-image capability scan (scan), cross-base UID/GID remap (remap), UEFI boot-entry audit (boot_audit), DE config stash/restore (de_migrate), types.
• crates/bootc-migrate — the protected MVP binary described above. CLI surface (clap), commit/undo/rollback subcommands, the TUI wizard. Its four E2E cells are untouchable regression gates — this binary's behavior doesn't change as new capability lands in bootc-rebase.
• crates/bootc-rebase — the universal re-base engine binary; see below.
• tests/run-e2e.sh — QEMU E2E harness exercising both binaries.

bootc-rebase — the universal re-base engine

bootc-migrate above does one proven thing: OSTree → ComposeFS. bootc-rebase is the generalization — a routing table over backend × strategy that will eventually cover every bootc re-base shape (same-backend image swaps, cross-backend conversions, bootloader changes, cross-distro-family moves, desktop-environment switches). It's newer and less battle-tested than the MVP binary; treat subcommands marked skeleton or read-only below as previews, not yet full features.

cargo build --release -p bootc-rebase

Subcommand	What it does	Status
scan <image>	Registry-streamed capability probe of a target image — composefs/ostree readiness, fs-verity requirement, transient root/etc, bootloader payload, desktops, base OS identity, sysusers, initramfs flavor, filesystem expectation, and a Compatible: YES/NO verdict with reasons. --json for machine output.	Done
rebase --target-image <image>	Re-base the running system, routing on --source-backend/--target-backend through the strategy table below. --plan prints the route and exits without touching the system.	Implemented for ostree→composefs (the MVP pipeline), composefs→composefs (image swap), and ostree→ostree (native bootc switch, with cross-base UID/GID remap when host and target disagree on distro family — pass --accept-cross-base to proceed past the report)
rollback [--reboot]	Re-order UEFI BootOrder back to the previous deployment.	Done
boot-entries [--json]	Enumerate and classify UEFI boot entries: dead (loader path missing), generic-label, duplicate, firmware-managed. Read-only — reports what could be cleaned up; removes nothing.	Read-only audit; interactive cleanup + distro-branding rename not yet implemented (#31)
de-migrate stash|restore	Move a user's desktop-environment config (GNOME dconf/gnome-shell, KDE kdeglobals/plasma/…) into or out of a stash directory around a cross-DE re-base — union of paths per issue #68, never deletes. --run-hooks executes pre-switch.d/post-switch.d scripts with REBASE_FROM_DE/REBASE_TO_DE/REBASE_STASH_DIR/REBASE_HOME set. --dry-run previews without touching anything.	Stash/restore mechanics + hook contract done; target-image DE detection and wiring into rebase itself are not yet implemented (depends on the cross-base hardening milestone landing first)
migrate-bootloader --to systemd-boot	GRUB2 → systemd-boot conversion, standalone of a backend re-base.	Not implemented — the subcommand exists and always refuses; only the pure BLS-entry/kernel-arg/entry-token logic it will use has landed. Live ESP populate + NVRAM cutover + the kernel-install resync hook (without which a flipped system would silently boot stale kernels) are deliberately deferred pending explicit sign-off and a dedicated E2E cell — see #65 for the full implementation plan

rebase's routing table (crates/bootc-rebase/src/routing.rs is the single source of truth the CLI consults before touching anything):

From ↓ \ To →	ostree	composefs
ostree	OstreeDeploy (native bootc switch)	CoreMigration (this repo's proven phase 0–5 pipeline)
composefs	planned, not implemented	ImageSwap

Roadmap

Full milestone plan, current status per issue, and design decisions live in ROADMAP.md — start there for "what's next" and "why did we choose X over Y."

Contributing

Contributions are welcome — see CONTRIBUTING.md for setup and REVIEW.md for the code-review expectations. Run just check (clippy, rustfmt, unit tests, shellcheck) before opening a PR. AI-assisted contributions should follow AGENTS.md.

License

Licensed under either of Apache License, Version 2.0 or MIT license at your option.

Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in this project by you, as defined in the Apache-2.0 license, shall be dual-licensed as above, without any additional terms or conditions.
